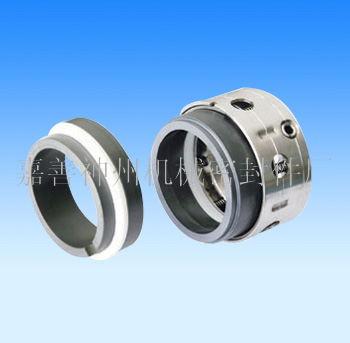

Products Name:Model 59B/58B mechanical seal

Products Details:Single end / balance / arbitrary rotation to / with EN12756 (DIN24960), the series of multi spring structure, the sealing surface of uniform stress, convenient installation, good versatility, wide application of oil, water, organic solvents and other corrosive medium.

Operating parameters:
Specifications: 14 ~ 100mm
Pressure: less than 6.0Mpa
Temperature: -20 ~ 200 DEG C
Line speed: 20m/s
Axial thrust: + 0.5mm

Material combination:
Sealing faces: graphite, silicon carbide, tungsten carbide, alumina
Auxiliary seals: Ding Jingjiao, fluorine rubber, ethylene propylene rubber, PTFE
Metal components: stainless steel, SUS304, SUS316L
